Light Type Hexagonal Wire Netting Machine

Light Type Hexagonal Wire Netting Machine

Light Type Hexagonal Wire Netting Machine
Categoriesgabion machine
AlbumView larger image
Brandcandid gabion machine
ModelL-CNG4300 Gabion Machine
After-sales Service ProvidedEngineers available to service machinery overseas
Out put160 - 225M/H
Colorblue green or Customerized
weight15T
Place of OriginZhejiang China
Automatic Gabion Machine wire2.0-4.0
Unit PriceUS $ 75000 / set
FOB portShanghai,Ningbo
Terms of PaymentL/C, T/T
Update Time2019-04-23
Detail Information
 candid Light Type Hexagonal Wire Netting Machine  INFORMATION

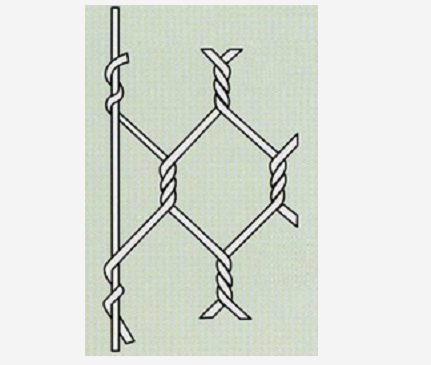

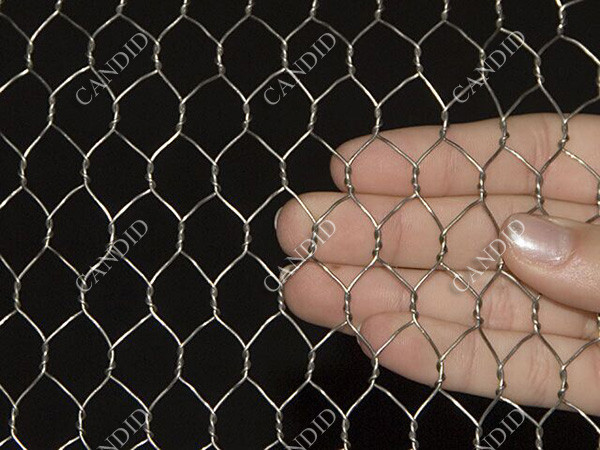

Detailed Hexagonal Wire Netting Machine Description: The series hexagonal wire netting machine have been designed to make gabion mesh of various widths and mesh sizes. The possible coatings are heavily galvanized and zinc. For high corrosion resistance, zinc and PVC, gabion coated wire is available.Net


We can manufacture Light type hexagonal Wire Netting Machine according to customer's request.



1.Mesh Size’s range from 50*70 mm To 176*200 mm;

2.We can design the machine to produce the mesh size according to customer’s request .But the mesh size should in the range of 50*70 mm To 176*200 mm;

3.Range of galvanized wire:2.0mm4.0mm(for different mesh size pls find the parameter in the specification);

4.Range of PVC coating galvanized wire: 5.0mm;

5.Our motor adopt Frequency Motor



Model



Specification

Mesh size

(mm)

Netting

Width

(mm)

Wire

Diameter

(mm)

Weaving

Quantity

(mm)

Rotation

Speed

(r/min)

Motor

Power

(kw)

Theoretical

Output

(m/h)

LNWL-1015-2

1/2’

15*18







1200

0.80

3

33

3

51

LNWL-1018-2

5/8’

18*25

0.90

3

33

3

67

LNWL-1022-2

3/4’

22*23





1.20

3/5

33

3

83

LNWL-1027-2

1’

27*41

3/5

33

3

100

LNWL-1032-2

1/1/4’

32*52

3/5

33

3

122

LNWL-10392

1/1/2’

39*61

3

33

3

142

LNWL-1055-2

2’

55*70

3

33

3

162

LNWL-1078-2

3’

78*86

3/5

33

3

194

LNWL-2015-2

1/2’

15*18







2000

0.80

3

33

3

51

LNWL-2018-2

5/8’

18*25

0.90

3

33

3

67

LNWL-2022-2

3/4’

22*23





1.20

3/5

33

3

83

LNWL-2027-2

1’

27*41

3/5

33

3

100

LNWL-2032-2

1/1/4’

32*52

3/5

33

3

122

LNWL-2039-2

1/1/2’

39*61

3

33

3

142

LNWL-2055-2

2’

55*70

3

33

3

162

LNWL-2078-2

3’

78*86

3/5

33

3

194

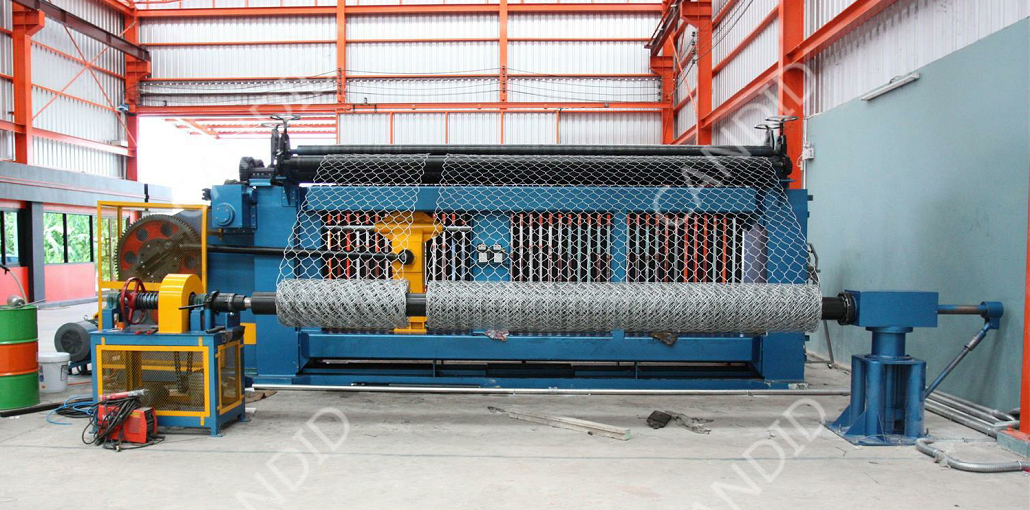

Main Machine (Light Type Hexagonal Wire Netting Machine series
Light Type Hexagonal Wire Netting Machine  Advantages:

1. New type double rack drive gabion machine
2. High efficiency: theoretic output=255M/H
3. PLC control system touch screen(Option)
4. Infrared ray safety(Option)
5. Automatic stop system (Option)
6.Automatic oil system
7. It use seamless steel tube to increase inside diameter , make it put more spring wire so it can save the time of changing spring wire and improve output.
8. The design is innovation in China, it can weave 4.0mm wire mesh easily like normal machine weave 2.4mm wire mesh, and speed is also quickly as normal style.
Installation and service:
We can dispatch our engineers to your factory for the installation of the machine and the training. About the detailed information of after-sales service, you can contact with our sales personnel.
Q: How many mesh size can one gabion machine produce?

A: Usually one gabion machine produce one mesh size. But Max. two mesh size include: 50*70mm with 100*150mm, 60*80mm with 120*150mm ,80*100mm with 160*180mm .without to change the parts of main mesh sizing roller and disk wheel.

We also exported to inland country, so we use 40 feet HQ container to load the machine and transport it by railway.
Q: 2. What is the delivery time of equipment?

A: According to the quantity of your demand, for example, if you need one set machine, we will finish it in 30 days.
