High Efficiency Gabion Box Machine

High Efficiency Gabion Box Machine

High Efficiency Gabion Box Machine
High Efficiency Gabion Box MachineHigh Efficiency Gabion Box Machine
Categoriesgabion machine
AlbumView larger image
Brandcandid gabion machine
ModelL-CNG4300 Gabion Machine
After-sales Service ProvidedEngineers available to service machinery overseas
Out put160 - 225M/H
Colorblue green or Customerized
weight15T
Place of OriginZhejiang China
Automatic Gabion Machine wire2.0-4.0
Unit PriceUS $ 75000 / set
FOB portShanghai,Ningbo
Terms of PaymentL/C, T/T
Update Time2019-06-26
Detail Information
 candid High Efficiency Gabion Box Machine
About candid High Efficiency Gabion Box Machine video

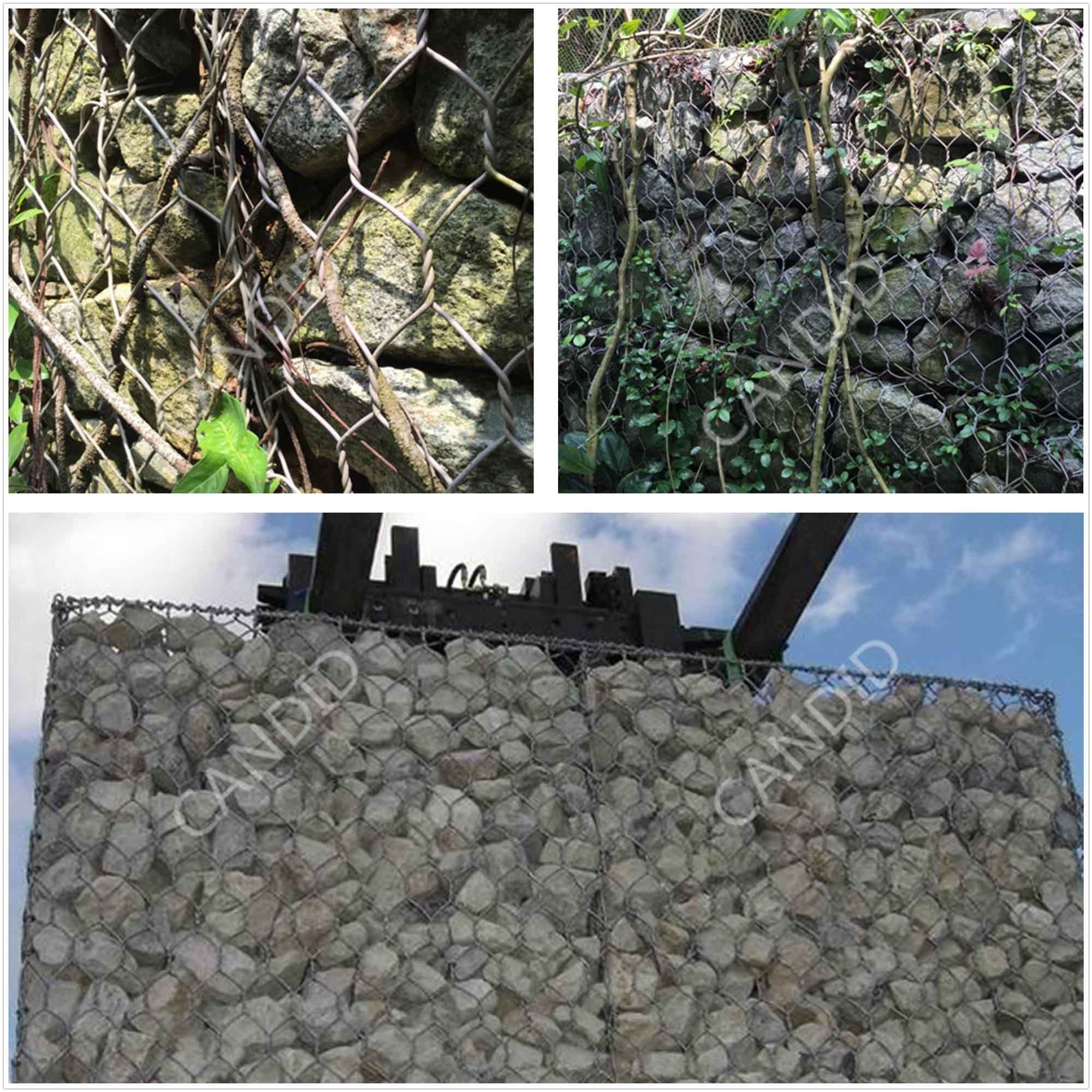

The series gabion machines have been designed to make gabion mesh of various widths and mesh sizes. The possible coatings are heavily galvanized and zinc. For high corrosion resistance, zinc and PVC, gabion coated wire is available.

We can manufacture Gabion Machine according to customer's request.



1.Mesh Size’s range from 50*70 mm To 176*200 mm;

2.We can design the machine to produce the mesh size according to customer’s request .But the mesh size should in the range of 50*70 mm To 176*200 mm;

3.Range of galvanized wire:2.0mm4.0mm(for different mesh size pls find the parameter in the specification);

4.Range of PVC coating galvanized wire: 5.0mm;

5.Our motor adopt Frequency Motor


Mesh Size

(mm)

Max. Breadth

(mm)

Max.Dia of Weaving wire(mm)

Max.Dia of Bordering Wire(mm)

Max Weaving-

vein No.

Power

(kw)

Theoretical Manu-

facturing speed

Exterior Size(m)

Weight

(T)

Mesh Hole Count/Minute

Meter/

Hour

L×W×H




60×80

2300

2.7

4.0

3/5

11

42

165

5.2*1.4*2.4

13

3300

2.7

4.0

3/5

15

42

165

6.2*1.4*2.4

14

4300

2.7

4.0

3/5

30

42

165

7.2*1.4*2.4

15



80×100



2300

4.0

4.0

3/5

11

42

225

5.2*1.4*2.4

13

3300

4.0

4.0

3/5

15

42

225

6.2*1.4*2.4

14

4300

4.0

4.0

3/5

30

42

225

7.2*1.4*2.4

15



100×150

2300

4.0

4.0

3/5

11

42

225

5.2*1.4*2.4

13

3300

4.0

4.0

3/5

15

42

225

6.2*1.4*2.4

14

4300

4.0

4.0

3/5

30

42

225

7.2*1.4*2.4

15



160×180

2300

4.0

4.0

3/5

11

42

250

5.2*1.4*2.4

13

3300

4.0

4.0

3/5

15

42

250

6.2*1.4*2.4

14

4300

4.0

4.0

3/5

30

42

250

7.2*1.4*2.4

15



176×200

2300

4.0

4.0

3/5

11

42

250

5.2*1.4*2.4

13

3300

4.0

4.0

3/5

15

42

250

6.2*1.4*2.4

14

4300

4.0

4.0

3/5

30

42

250

7.2*1.4*2.4

15

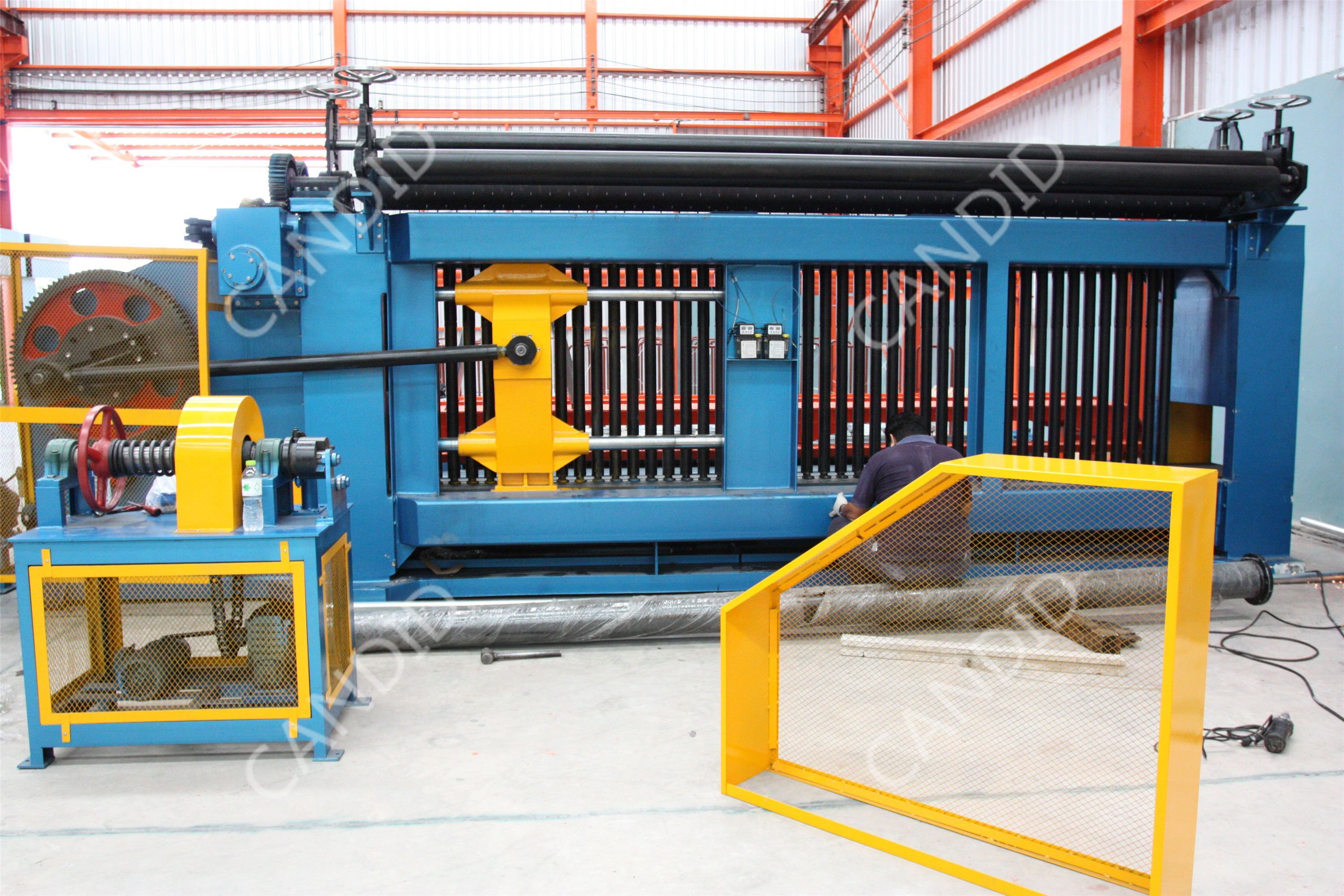

Main Machine (High Efficiency Gabion Box Machine series
Auxiliary of Gabion Box Machine:
1 Wire Spiral Coiling Machine
what is Wire Spiral Coiling Machine?
2 Netting Roll Winding Machine
what is Netting Roll Winding Machine?
3 Electric control box
what is Electric control box?
4 Wire tension machine
what is  Wire tension machine ?

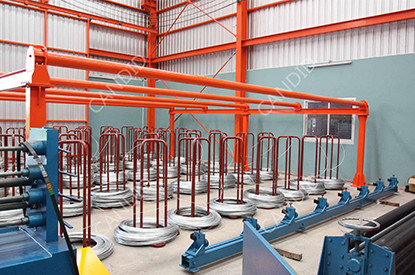

Wire Pay-off System
what is  Wire Pay-off System?
Gabion Machine Advantages:

1. New type double rack drive gabion machine
2. High efficiency: theoretic output=255M/H
3. PLC control system touch screen(Option)
4. Infrared ray safety(Option)
5. Automatic stop system (Option)
6.Automatic oil system
7. It use seamless steel tube to increase inside diameter , make it put more spring wire so it can save the time of changing spring wire and improve output.
8. The design is innovation in China, it can weave 4.0mm wire mesh easily like normal machine weave 2.4mm wire mesh, and speed is also quickly as normal style.
Installation and service:
We can dispatch our engineers to your factory for the installation of the machine and the training. About the detailed information of after-sales service, you can contact with our sales personnel.
Q: 1. How to transport the machine?

A: As usual, we use 40 feet open top container to load the machine and transport it by sea.

We also exported to inland country, so we use 40 feet HQ container to load the machine and transport it by railway.
Q: 2. What is the delivery time of equipment?

A: According to the quantity of your demand, for example, if you need one set machine, we will finish it in 30 days.
